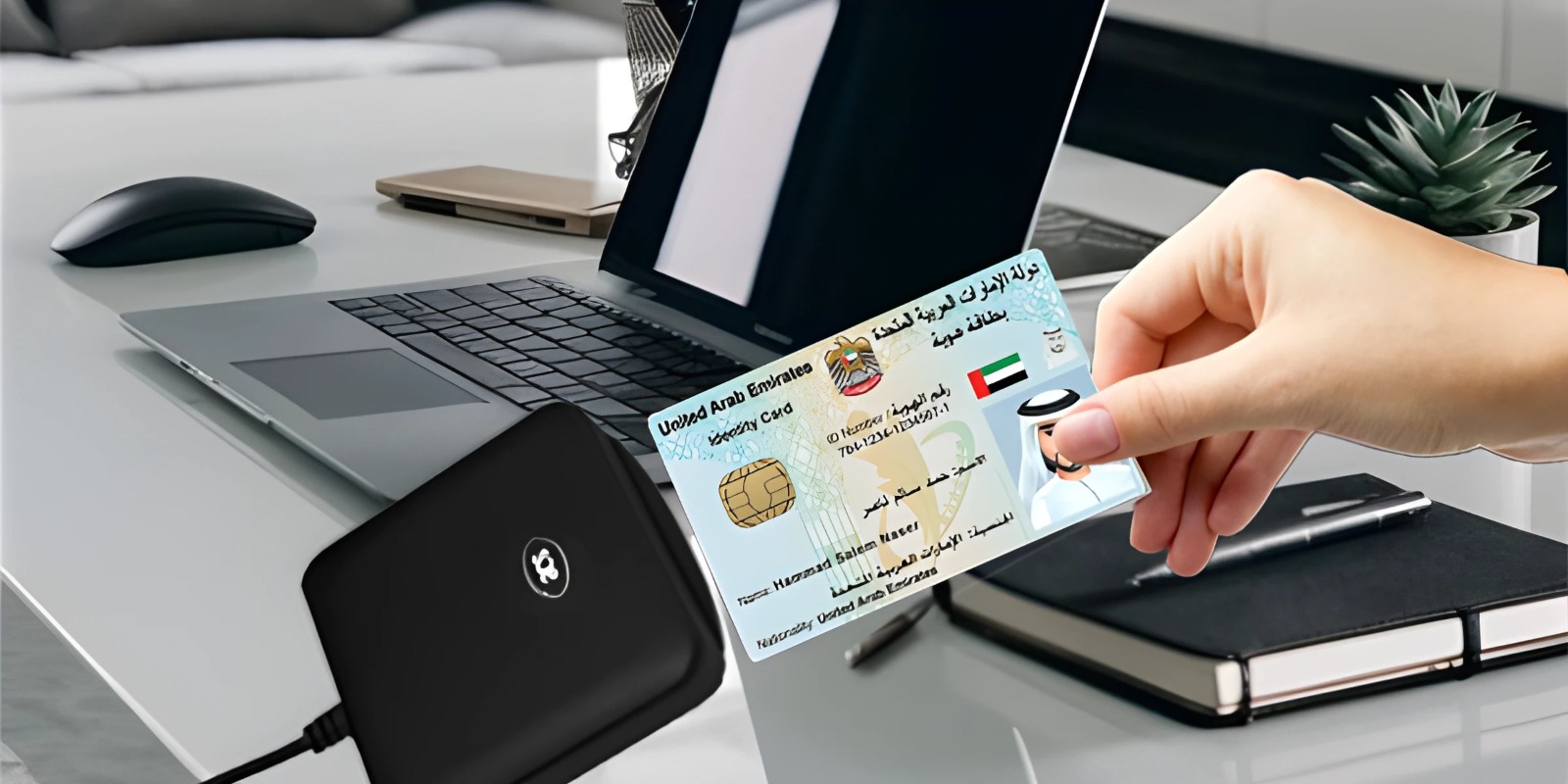

ACR39u Smart Card Reader

The ACR39U is a compact, stylish smart card reader that supports most smart cards, including ISO 7816 memory chips, such as the Secure Internet Protocol Router Network (SIPRNET) Card. The ACR39u is the ideal smart card reader for various industries and applications, including national solutions, Emirates ID readers, ERP solutions, and visitor management systems. The ACR39u is very simple to use, and it is a plug-and-play device.

Key Features of ACR39u

Compact and stylish design
Supports PC/SC and CCID operations.
Plug and play the device.
Ideal smart card reader for e-banking and e-payment operations
Supported smart card types include ISO 7816 Class A, B, and C (5 V, 3 V, and 1.8 V), Microprocessor Card (T=0, T=1), Memory Card, MyKad Card, CAC, J-LIS, SIPRNET Smart Cards
Certified for international regulations, including EN 62368/IEC 62368, UL 62368, CE, UKCA, FCC, RoHS, REACH, VCCI, USB 2.0 Full Speed, and Microsoft® WHQL.

Reliable

Compatible with Windows, Linux, MacOS, Solaris, and Android

Technical Specification of ACR39U

Supported Card Types: ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V), Microprocessor Card (T=0, T=1), Memory Card, MyKad Card, CAC, J-LIS, SIPRNET Card

Read/Write Speed: 9.6–600 Kbps
Power Source: USB
Protocol: USB CCID
Supply Voltage: 5V
PC/SC Support: Yes
CCID: Yes
Dimensions: 72.2mm (L) × 69.0mm (W) × 14.5mm (H)
Weight: Type-A: 65 g ± 6.5 g Type-C: 56 g ± 5.6 g
LED: Green
Certifications: UL 62368, CE, UKCA, FCC, RoHS, REACH, VCCI, Microsoft® WHQL, EN 62368/IEC62368, EMVTM Level 1 (Contact), BIS, J-LIS, KCC, PBOCOC, TAA (USA), UL, ISO 7816, USB 2.0 Full Speed
