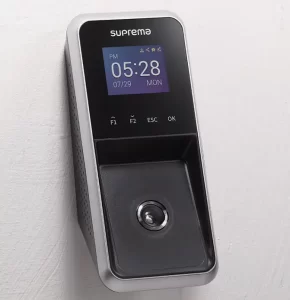

Suprema FaceLite Compact Face Recognition Terminal
The Suprema FaceLite is a compact facial‑recognition terminal designed primarily for access control and time attendance systems. It’s made by Suprema, has a 1.2 GHz quad-core CPU, and is equipped with 8 GB flash and 1 GB RAM; it offers rapid matching and dependable performance. This device provides fast and reliable recognition across a wide illuminance range, from complete darkness (0 lux) to bright sunlight (25,000 lux). There are security features like live‐face detection to prevent spoofing using photos/screens and encryption of face templates. Supports up to 30,000 users for 1:1 verification (user vs. stored template) and ~4,000 users for 1:N identification (user vs. entire database). The device is equipped with Ethernet, RS-485, Wiegand, relay I/O, and other interfaces. The device makes it usable in traditional access-control systems.
Corporate or industrial access control, which combines face recognition with card or mobile credentials for employee door entry, is a crucial feature. Time and attendance tracking is ideal for hygiene-sensitive areas such as labs, healthcare facilities, and cleanrooms. Standard biometric terminals may struggle in locations with challenging lighting conditions, such as bright outdoor and mixed indoor environments.
Ultra Performance
• Matching Speed: 1:3,000 match/sec
• Group Matching: 1:5,000 match/sec
• User Capacity: Max 30,000 users (1:1), 4,000 users (1:N)
Highest Operating Illuminance
• Operating illuminance from 0 lx to 25,000 lx
• Covers complete darkness to all indoor lighting conditions
Enhanced Security
• IR-based Live Face Detection (LFD): Prevent spoofing by printed images and LCDs
• Face template encryption
• Secured communication with TLS 1.2
Multi RFID Card Reading
• LF (125 kHz), HF (13.56 MHz) dual-band
• Reads all card types including mobile cards (NFC and BLE)
Ergonomics & User Convenience
• Extended height range: 145cm – 210cm
• Improved face enrollment procedure
| Model Name | FL-DB |
| Biometric | Face |
| RF Options | 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa |
| Mobile Card | NFC, BLE |
| Max. User | 30,000(1:1), 4,000(1:N) |
| Max. Log | 5,000,000 |
| Ethernet | 10/100Mbps, auto MDI/MDI-X |
| RS-485 | 1ch Host or Slave (Selectable) |
| Wiegand | 1ch Input or Output (Selectable) |
| TTL | 2ch Inputs |
| Relay | 1 Relay |
| Tamper | Supported |
| CPU | 1.2GHz Quad Core |
| Operating Temperature | -20°C ~ 50°C |
| Dimensions (WxHxD, mm) | 80 x 170 x 76 |
| Power | DC 24V |
